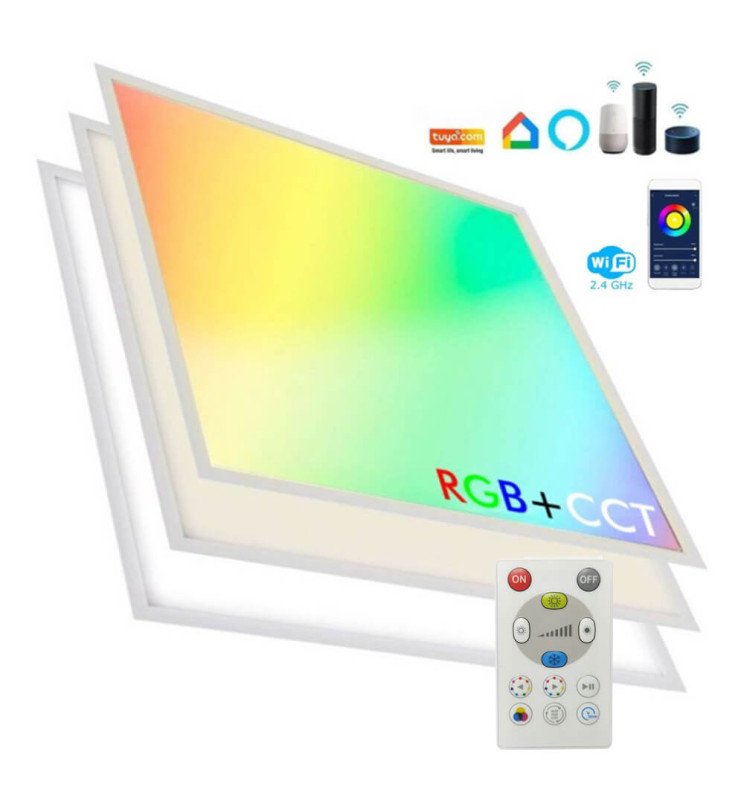

Panel LED 60x60 - Regulable - 40W CCT + RGB + SMART Google - Alexa

LED Panel WHITE FRAME 40W measuring 595mm x 595mm, it has an elegant finish and a modern design.

La Pantalla LED 60x60 40W CCT+ RGB,  can also be suspended, or surface mounted. To be installed on the ceiling, the panel needs the surface kit or the suspension kit (see accessory kits).

CONTROL MODES:

A- WITH 2.4G REMOTE CONTROL:

With the remote control - RF - para panel LED podrás controlar y seleccionar el color de tu iluminación al gusto de tus necesidades:

• Off and On.
• Night Mode (Brightness at 10%)
• Increase and Decrease Brightness: to select: Warm White, Neutral White and Cool White.
• RGB button: to switch between Red, Green and Blue.
• Flash mode: Interval mode creating a transition effect between the different colors.
• Smooth mode: Interval mode creating a smooth transition effect between different colors.

You will be able to synchronize several RGB panels with the same control, as well as using separate controls for each panel.

The CCT+RGB LED Panel has a memory, and stores the last color used after a power off.

B- CONTROL BY YOUR APPLICATION (FOR PHONE) COMPATIBLE WITH ALEXA AND GOOGLE HOME (FOR SPEAKERPHONE):

1. Puede descargar la aplicación "Tuya" desde su teléfono inteligente para controlar la lámpara.
2. When the lamp is connected to the phone for the first time, the lamp and the phone must be connected to the same good WiFi. This light cannot change another WiFi while connecting.
3. When the lamp is connected to the phone, keep it close to the cell phone and Wi-Fi device.
4. If the lamp is connected to the telephone, do not turn off the lamp or the WiFi.
5. Turn the lamp on and off three times. Make sure that the lamp indicator flashes rapidly (twice per second) before switching it on.
6. Open the YOUR APPLICATION on the cell phone, the lamp information will be displayed automatically (if not displayed, click on: Add device-Lighting-Light panel) and then click connect. In about 15 seconds, the cell phone will show that the connection was successful and the lamp will stop at the same time to blink. The lamp will also indicate that the connection was successful.
7. If the lamp cannot flash quickly after several attempts, let the lamp adhere for 15 seconds, then turn it off and turn it on again. The lamp will return to its original state, try again.

Product Data Sheet

 REFERENCE

PN40W-RGBCW-91183

 Nominal Power

40w

 Nominal Voltage

85V-265V

 Light Temperature

RGB+CCT

 CRI -Cromatic Reproduction Index

84

 Building Material

Aluminum +PC

 Luminosity-Lm

4000Lm

 Luminosity-Lm

4000Lm

 LED Type

SMD 2835

 Opening Angle (º)

120º

 LED Diode Efficiency (Lm/W)

120Lm/W

 Luminous Efficacy (Lm/W)

100 Lm/W

 Dimable

YES

 Certificates

CE - ROHS

 IP Rating

IP40

 Estimated Life LED Diode (H)

50.000

 Measurements (Mm)

595x595xH30

 Power Factor (PF)

0,95

 Working Frequency (Hz)

50/60Hz

 Temperature Range (ºC)

-20°C ~ +55°C

 Ignition Cycles

100.000

 Start-up time (S)

0,2s

 Additional Information

Flicker Free - WiFi 2,4Ghz -

 Driver Included

YES

 Energy Class (2021-UE-2019/2015)

A

 Warranty Years

5
